MapEO Water

Using state-of-the art drone technology to monitor water quality. The MapEO Water service converts drone data into geo-referenced images providing information on the physical properties of water bodies.

Developer: VITO
Contact: remotesensing@vito.be

Specifications

  • Resolution: cm-resolution (depending on flight height)
  • Dimensions: Drone platform dependent
  • Power requirement: Battery
  • Method to transmit data: Upload to workflow through FTP server. Data access of processed data through WMS and WCS.
  • Deployment method: The system has to collect data according to predefined flight instructions to avoid contamination by sun glint, and enable correction for incoming irradiance.

Overview

The MapEO is a data processing service that converts optical aerial drone data into geo-referenced images. The camera sensors attached to drones collect RAW radiance and irradiance data together with GPS/IMU information. This information is then converted into geo-referenced water-leaving reflectance products, which provide information on parameters such as turbidity, total suspended sediments or chlorophyll concentrations.

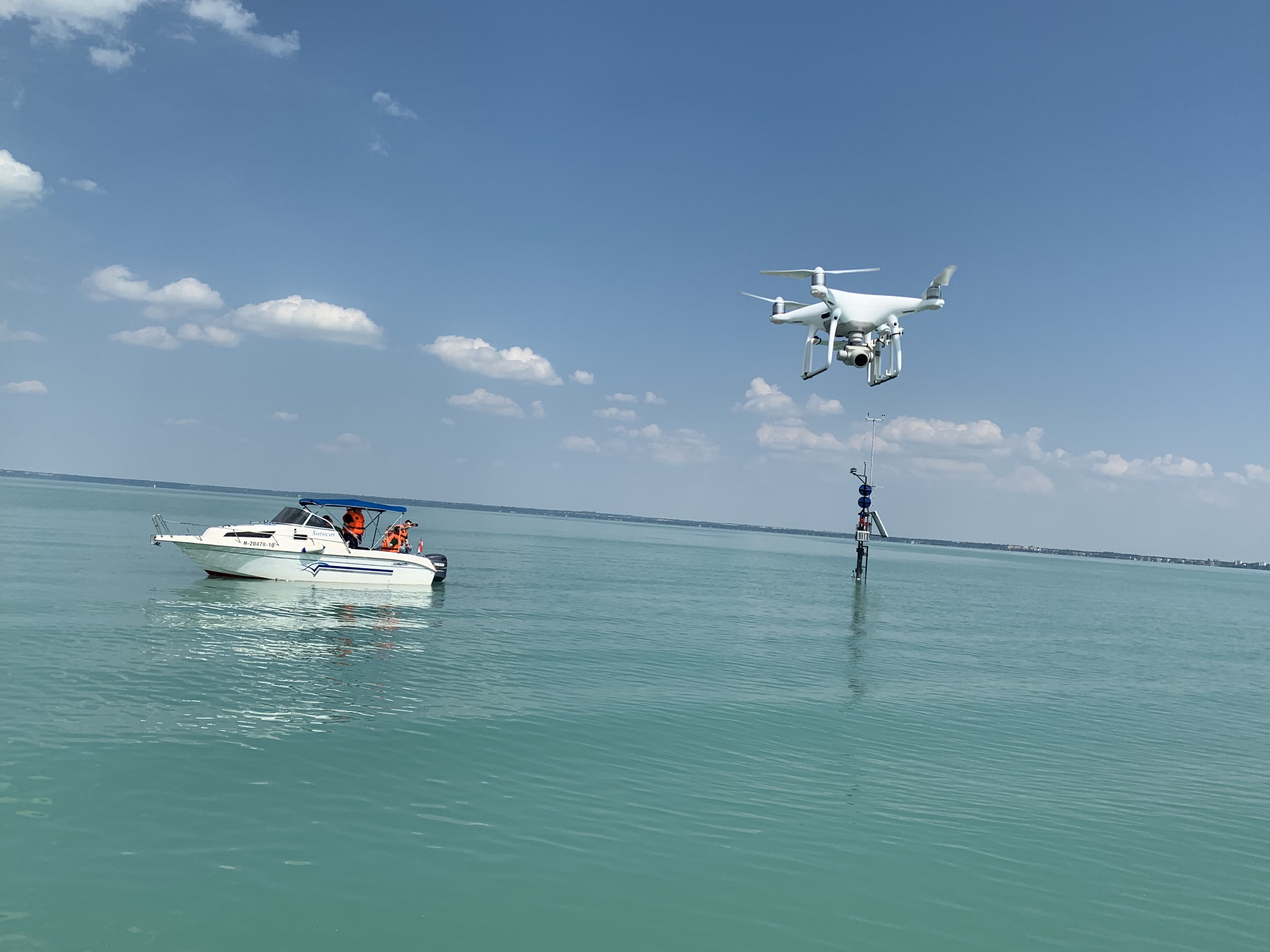

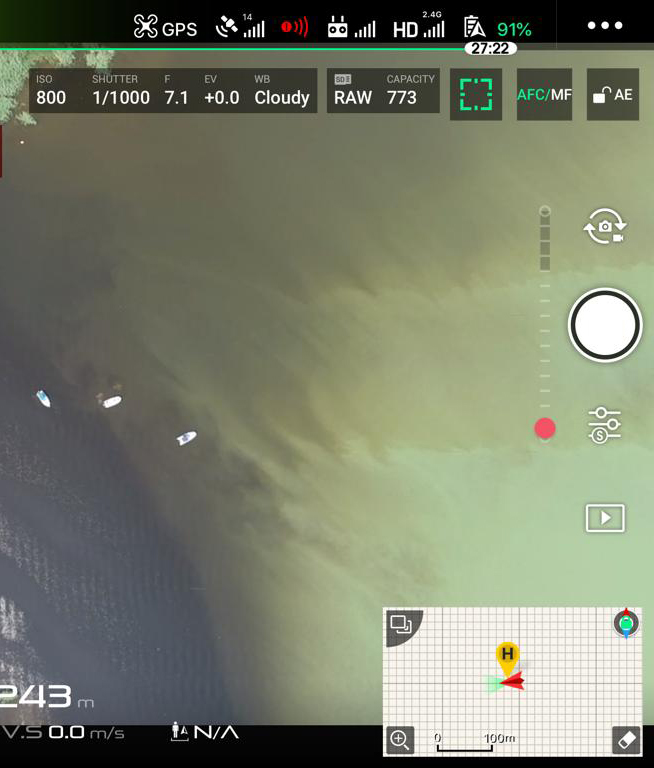

Using drones as a tool to monitor water quality is especially useful as they can be deployed in all but the worst weather conditions, flying just tens of metres above the water surface, to look at centimeter scale features. In just one flight a single drone can cover several thousands of square metres!

Drone data products can help to fill the gaps in traditional water sampling and satellite remote sensing, as they have a high spatial resolution, are not hindered by cloud cover and can provide multiple surveys per day. Drones also allow collection of data in hard to reach areas.

Through MONOCLE the MapEO service has operationalized the processing workflow in the cloud and developed the processing of multispectral data along side RGB data.

MAP EO Water logo

What does it measure?

The camera measures radiance over water bodies, expressed in Digital Numbers (DN). MapEO Water converts these into physically meaningful values:
  • Water leaving reflectance
  • Turbidity
  • Total Suspended Matter
  • Chlorophyll-a concentrations

How does it work?

In the development of the MapEO services some key challenges in application of image technology to characterize water columns had to be overcome, for example:
  • Water bodies often look dark on images.
  • The interaction of the light with the atmosphere just above the water surface plays a major role (sky glint). Luckily, this can be modelled through a modified version of VITO’s atmospheric correction algorithm iCOR (iCOR4Drones).
  • The water surface acts as a mirror (sun glint). Therefore, a well-adapted flight protocol and hardware setup is indispensable.
  • The water column is often a dynamic environment, variations in currents and tides can lead to a rapidly changing scene under investigation.
These challenges are addressed one by one in a clear processing workflow.

Diagram of MapEO workflow
Wokflow diagram of MAP EO



Image gallery

Technical drawing

Graphical image of the processing workflow that makes up the MapEO water service.
Graphical image of the processing workflow that makes up the MapEO water service.

Deployment information

The system has to collect data according to predefined flight instructions to avoid contamination by sun glint, and enable correction for incoming irradiance.

Standardised data access

We provide several interoperable data interfaces, as detailed below:

Type of data: Drone imagery collected by/for MONOCLE
Format: WMS, WCS (processed imagery)
Front-end
WMS GetCapabilities
WCS GetCapabilities

Documentation and publications

Supporting materials

User guideDrone data acquisition over water bodies with DJI Phantom 4 pro
User guideRPAS: Remotely Piloted Aircraft Systems - Deployment and Operation

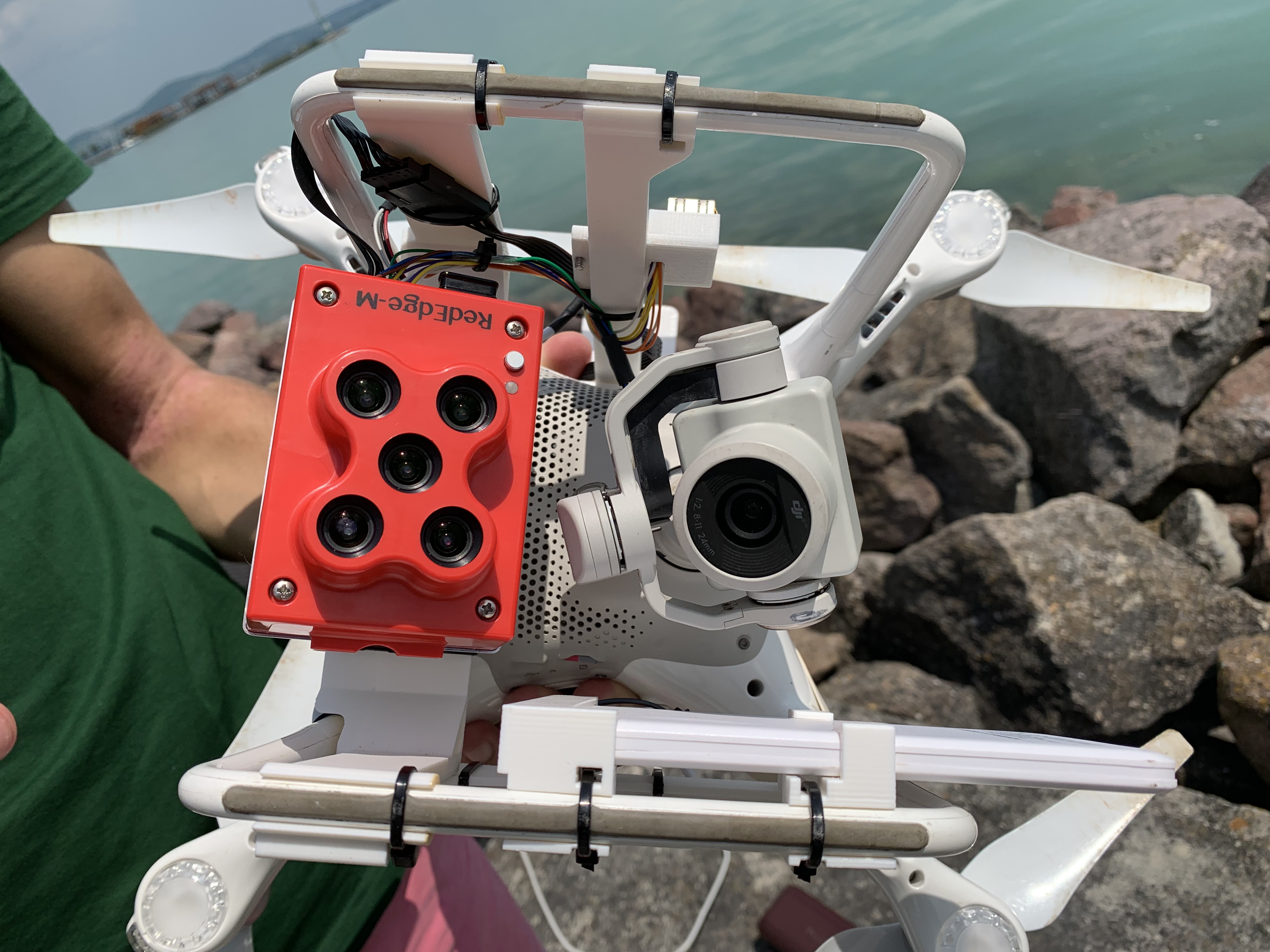

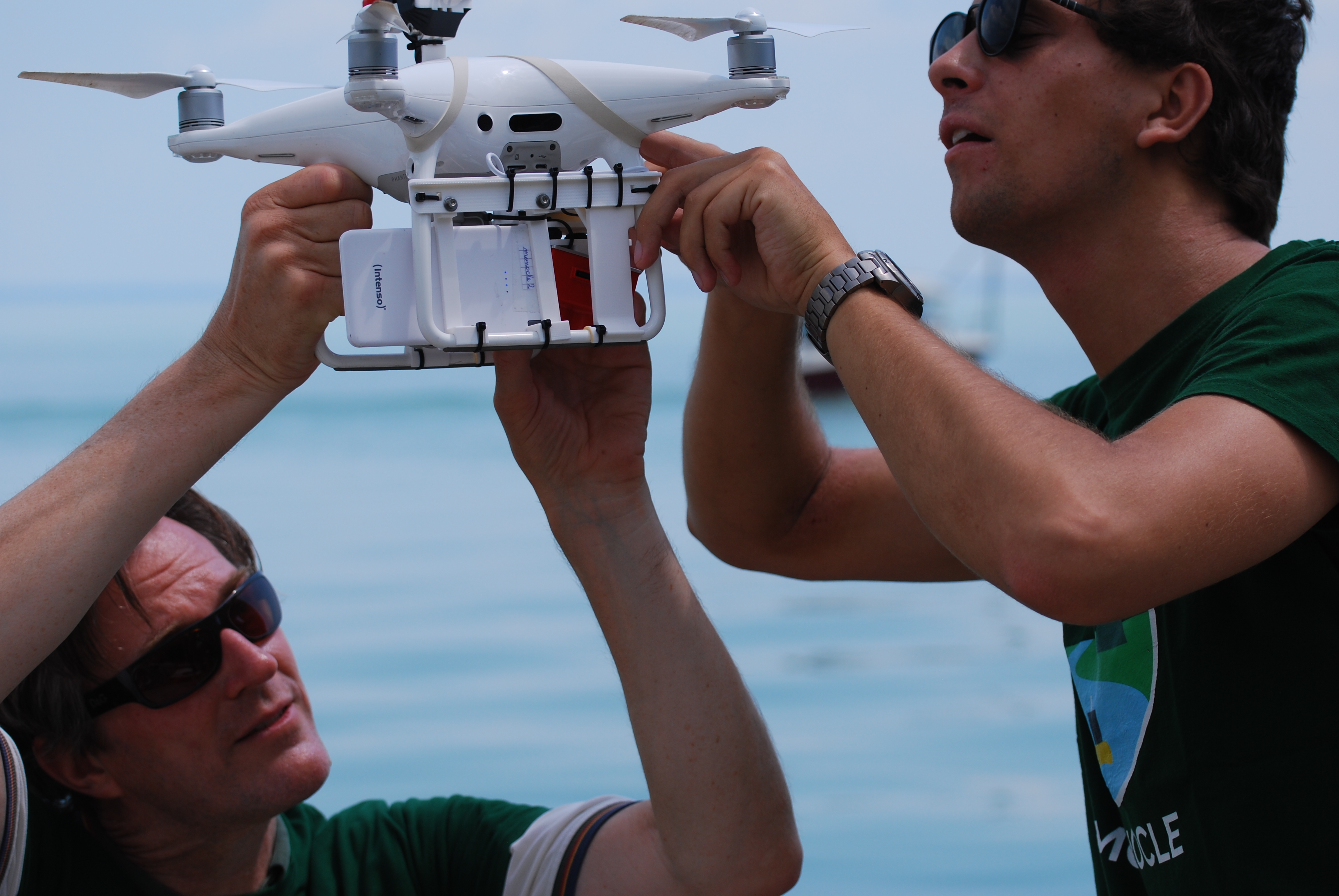

User guideMicasense RedEdge-M integrated under DJI Phantom 4 pro
User guideDrone data upload tool - Field Software
Video: Introduction to MapEO Water workflow process
Webinar: Monitoring water quality with satellites and drones
Webinar: Airborne drone-based monitoring of surface water quality

Download the operational protocols for MONOCLE sensors and platforms
This document provides a set of protocols for the deployment of MONOCLE systems to ensure best practices to collect reliable data.
System user and developer handbook

This handbook provides an overview of the data requirements and interfaces that were adopted in the sensors and observation platforms of MONOCLE.

VITO Remote Sensing Mapeo-Water website
